The M17 series of protective masks were a series of field protective masks standardized for the United States military in March 1959 and used through the middle 1990s when it was officially phased out with the introduction of the new M40 series protective mask.

Background

After WWII, and with the cold war between the US and the USSR looming, it was clear to war planners that any future war would quickly escalate from conventional to chemical and biological war. With the proliferation of the G-series and relatively new V-series nerve agents, the US military decided to design a new mask to meet the challenges of these new threats. Military planners deemed the M9 as too bulky for modern combat due to the large filter canister mounted on the side of the face blank (although M9 series masks would be used for special purposes well through the mid-1990s). The late 1950s respirator design philosophy emphasized new and innovative solutions to existing and emerging problems. In this spirit, new design requirements were drawn up for a compact design that did not have external filter canisters or hose-connected filter elements.[1] The internal filter pouch solution was selected to meet this form factor and also eliminated the requirement to have different designs for the left and right-handed service members. A voice diaphragm was also a design requirement to aid in battlefield speech communications in a contaminated environment.[2] Utilizing previous work on canister-less civilian masks and earlier military prototypes, Dr. Frank Shanty, a young engineer assigned to the Army Chemical Center, thought of the concept for the M17 mask on a late-night train to Cincinnati, Ohio.[3] After about a decade of testing and development, a mask began production in 1959 as the ABC-M17 (Atomic, Biological, Chemical) with the same standard of protection as the M9 series, although with a longer 24 hour filtering capacity and shooter friendly design. Approximately 3.3 million M17A1 and M17A2 masks were produced between 1967 and 1986.[4] As senior inventor and managing engineer of the mask, Dr. Shanty was awarded a U.S. patent for it in 1959.[3]

Prototypes

M17

Earlier prototype model, possibly an E13R8.

In the 1950s, the U.S. Army experimented with a variety of masks testing various filter technologies; many concepts that were tested were ultimately dropped. The E13-series masks tested these various configurations. The E13R4 mask had integral cheek-mounted filters and was considered superior since the mask did not require a separate filter connected by a hose and accommodated left and right-handed soldiers without modification. The final mask, adopted as the M17, was a slightly modified E13R9.[5] Experimentation with the design continued throughout the operational life of the mask. One such variant was the XM27[6] created in 1966. This experimental design was basically an M17 made entirely of grayish-green silicone rubber instead of the black butyl/natural rubber formulation of the basic M17 model. While more comfortable for the wearer, the design was rejected since there was the concern of penetration of liquid persistent chemical warfare agents such as VX. A few examples of this mask were made with clear silicone rubber. It is hypothesized that these were made to illustrate the internal workings of the mask to decision makers and were not intended to be a production model. This prototype was scrapped and the XM27 is considered by collectors, especially the masks made of clear silicone rubber, as some of the rarest gas masks known to exist.[7]

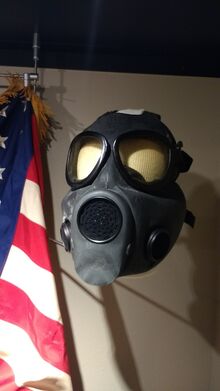

Mask, Protective, Field, ABC-M17

IMG 20170705 141215271

The ABC-M17 was used by civilian law enforcement agencies for crowd control operations when protection from tear gas was required. This specimen is from the Texas Ranger Museum in Waco, Texas.

Standardized in March 1959 and seeing full scale production by 1961, the US Army issued service members the ABC-M17 protective masks for the first time. The ABC in the nomenclature was an initialism for Atomic Biological Chemical. The mask received generally positive reviews but some service members complained about the difficulty of filter changing. This first version of the M17 did not incorporate a drinking tube or resuscitation system, instead only featuring a voice diaphragm. Although the voice diaphragm was a welcomed addition to American protective masks, it was minimally compatible with radio handsets of the era. Talking on a radio while masked meant juggling the handset between ear and voice diaphragm leading to confused and muffled communications. This arrangement plagued all M17 designs and was only improved with the M40 series protective mask that has a voice diaphragm located specifically to interface with radio handsets. As newer models of the M17 were introduced, the old ABC-M17s migrated to law enforcement agencies where the advanced features of later models were not as important for simple crowd control with tear gases.

USA-0004(007)

Final design ABC-M17 Picture by: Johannes Möller

Westinghouse Rotary-Actuated Prototype[8]

After the introduction of the ABC-M17, research went into developing an updated variation of the mask that would allow the wearer to drink and resuscitate gas casualties while wearing the mask without breaking the seal. A contract was secured with Westinghouse Electric Co. UnderSeas Division on April 1st, 1964.[9] This contract was to help design the drinking and resuscitation assembly that would be used on this new mask. Westinghouse personnel met with persons from CRDL (Chemical Research Development Laboratories) to review CRDLs work so far on the project. Two initial designs were looked into by CRDL. The first incorporated a probe that would be attached to a hose from a canteen and fitted into the mask to drink. This was the initial design that influenced the contract. The biggest objection to this design was how time consuming the process was to fit the connector into the mask and that it would be near impossible to use during a combat scenario.  The second initial design incorporated a device that had a singular mouthpiece permanently fixed in a static position inside the wearer's mouth. This was coupled with a tube that extended outside the mask with a quick disconnect assembly on the end to attach to a specially modified canteen with a hose extension so the wearer could drink from the hip. An external resuscitation tube could also be mounted to a check valve on the exhaust valve of the mask to resuscitate gas casualties without removing the mask.  This design was also not considered satisfactory due to the fact the mouthpiece remained in the user's mouth at all times. Both CRDL and Westinghouse went to work at designing a mouthpiece that could be out of the way of the user’s mouth but also be able to be moved into the mouth when they desired to drink or resuscitate.

Three approaches were investigated for means of moving the tube and mouthpiece into the user's mouth. These three designs were:

  1. Use of a support mounted on the mask's nose cup so that when the nose of the mask is pressed in the support pushes the tube into the user's mouth.
  2. Attaching the tubing to a shutoff valve mounted on the voice emitter plate so that when the user pushes the shutoff valve in by a ½ inch, the tube is pushed into the user’s mouth.
  3. Attaching a shutoff valve to the resuscitation tube check valve housing so when pulled a 7/32 of an inch, it pushes the tube into the user's mouth. It was unclear though how one would move the tube into the user’s mouth when the resuscitation tube was installed since the tube would block the shutoff valve from being operated.

It was agreed that the First Developmental Model of the mask should be based off of the 3rd design proposal. The first three models were machined from brass due to its ease in fabrication. Soft wire was also used for ease of adjustment during testing and evaluation phases. These models were received by CRDL on June 4th, 1964. The 3 models and the canteen were studied by CRDL personnel and their comments on the design were:

  1. The pulling action of the shutoff valve would often break the seal of the mask by pulling the mask off of the user's face. It is recommended that the mask should utilize a rotary shutoff valve style instead.
  2. The tubing connected to the canteen is too small in diameter to drink appropriately in a short time period. The tubing size should be changed from a minimum 3/32 inch diameter to a ⅛ inch minimum diameter.
  3. The canteen tubing is or will be too prone to kinking and shutting off the supply of water to the mask Therefore, the tubing material should be changed to a material more kink resistant. Or increase the thickness of the tubing.
  4. More thought should be put into the design of the tubing and its attachment to the canteen. The tubing should be attached somewhere else then the cap. Another possible solution would be to store the tubing somewhere else then the canteen cap. Then have the tubing plugged into the canteen cap when the wearer wants to drink.

In answer to the first objection, the Second Developmental Model will incorporate a shutoff valve of a rotary style action. This rotary shutoff valve will move the mouthpiece into the user's mouth via a set of miter gears. The new design was originally planned to be delivered to the CRDL on August 1st, 1964 though was delayed to October 1st due to last minute design changes to the mask.

The Second Developmental Model that was presented by Westinghouse was a design that had a movable mouthpiece that could be moved in and out of the user’s mouth with a rotary-actuated torque lever. This design was simply codenamed: “Rotary-Actuated Westinghouse Model”. 3 of the initial Rotary-Actuated prototypes were procured for testing purposes. The first development model that used a push-pull mechanism to operate the was preferred for its easy operation, but as stated, this design would often cause the seal of the mask to break on the pull part of the action. The Rotary-Actuated model also had problems with the rotary lever being difficult to operate, though it was still preferred over the Push-Pull design. Soon after the Rotary-Actuated model was modified to improve performance. These modifications included:

  • Mouthpiece return spring
  • Mouthpiece operating knob
  • Gear sectors
  • Gear sector spacer so both shafts remain at a constant relationship
  • Second O-ring added to assembly shaft for better seal

Initially, 36 of these improved prototypes were procured for more extensive tests, though another 50 units were ordered by the chemical corps after the improved Westinghouse model was approved by the Chemical Corps for use in the next testing phase.  A third Developmental design was also being developed by CRDL. This model had both the Drinking coupling and resuscitation system set up as two different systems that each had their own tubes instead of a singular Mouthpiece like on the Westinghouse model. This likely was the design what made it into the final mask trials. All three of these designs were delivered to CRDL and tested at the Fort Detrick Army Biological Laboratories. The final mask designs that resulted from these experiments were two models based off of the third developmental model. These models were the E13R12 and E13R13.

E13R12 and E13R13

The two masks that made it to the final testing phases were two masks, the E13R12 and E13R13. The E13R12 was a ABC-M17 modified with a drinking coupling called The E49 drinking assembly. Another model was also introduced at the same time called the E13R13. This incorporated the E49 drinking system as well as the E50 gas casualty resuscitation system into one mask. During a E13R12/E13R13 leak test in a gas chamber In October 1965,[10] it was found that the E50 resuscitation tube drastically increased exhalation resistance over the E13R12. It was also found that some service members accidentally installed the E50 resuscitation tube second half onto the mask incorrectly, breaking the seal of the mask. Though tests found the E50 resuscitation system performed satisfactory in properly resuscitating gas casualties with the required pressures and that the wearer could still properly continue their mission afterwards. Because of this, it was favored over the E13R12 which led to the E13R13s adoption as the M17A1 in 1966.

Mask, Protective, Field, M17A1 / Mask, Chemical-Biological, Field, M17A1

Eight years after the introduction of the ABC-M17, the US Army updated the mask design. In 1966, the U.S. Army standardized the E13R13 as the M17A1 protective mask, officially dropping the ABC prefix from the name of the mask. The new mask came new features; the addition of the drinking system and the addition of the resuscitation system.

The M1 (E49) drinking system designed for the M17A1 is believed to be the first in the world, followed shortly thereafter by British and German designs. The drinking system, standard on US protective masks today, incorporates a hose pre-attached to the mask, instead of unscrewing and screwing multiple connections together (all the while exposing the water and human body to possible contamination). The M17A1 incorporates a quick couple connector that greatly reduces the risk of contamination when used with the compatible M1 Water Canteen Cap.

The other unique feature of the mask was much less successful. The M1 (E50) resuscitation tube was incorporated with the mask that was designed to allow a masked soldier to provide artificial respiration to an unmasked casualty. The concept and execution were problematic as the use of the tube could expose the wearer to contamination. The soldier giving aid ran the risk of encountering resistance from the airway of the casualty, pushing air back into his mask and breaking its seal. Due to this problem, the resuscitation system was dropped with the design of the M17A2.

Mask, Chemical-Biological, Field, M17A2

M17 Gas Mask

US soldiers wearing M17A2 masks, fitted with the M6A2 protective hood during the Gulf War.

This final version of the M17 mask was virtually identical to the M17A1 except for the absence of the M1 resuscitation tube. In fact, some M17A2 masks were M17A1 masks modified at depot level maintenance to remove the resuscitation tube however, a vast majority were purposely manufactured M17A2 masks.[1] The M17A2 retained the exterior tilt (rotary) lever for the drinking tube. A variety of items, depending upon the mission, were issued with the mask and stored in the mask carrier such as a waterproof bag that would protect the mask's filters from water damage during immersion. The M17A2 would use common M17 accessories such as neutral gray outserts and the characteristic olive drab NBC hood.

The M17A2 was kept in service longer than expected due to development problems with successor mask, the M40.[1] Although the M17A2 was eventually phased out and replaced by the M40 series protective masks, the extra-small version of the M17A2 was retained and issued to servicemembers with particularly small faces that could not be properly fitted with an M40 series mask. The extra-small masks were issued on a case-by-case basis directly from Rock Island Arsenal and the service member would retain that mask throughout his or her career. This purpose for the extra-small M17A2 was eventually phased out when the extra small M45 was fielded as part of the Land Warrior program.

Manufacturers and Rubber Markings

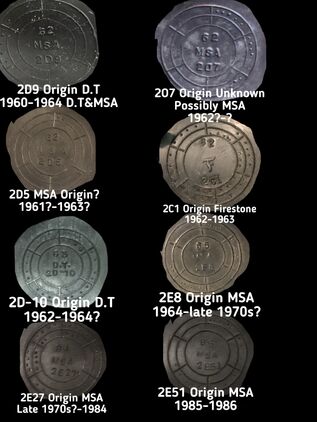

M17 rubber blend chart

With the nearly 30 year lifespan of of M17 series masks, there were many rubber lots and classifications, whether experimental or not. This photo compilation shows known manufacturer rubber markings.

MSA

MSA (Mine Safety Appliances) was the first and main contractor for the M17 series masks. It had contracted to produce face blanks since the early prototype phases of the M17 series through the end of the M17 manufacturing life. Because of this, MSA is the most common manufacturer of face blanks with most ABC-M17s and all M17A1/A2s being produced by them. Manufacturer stamps on the M17A2 can be found in two locations, one is near the right eyepiece with the manufacturer's name and year of manufacture (though can be somtimes found on the left side from a manufacturing error) and the second (almost hidden) mark is on the right side of the inner end of the nose cup assembly facing the internal filter compartment. (also can be found on left side occasionally) Other markings include "M# C#" (e.g. M5C1) just on the top of the right or left side.

D.T

D.T was contracted to produce ABC-M17 face blanks starting in May 1960. They shared production with MSA and Firestone. They had ended their contract by 1964 leaving MSA as the only remaining manufacturer of face blanks. Because of this, D.T marked face blanks are the second rarest.

Firestone

Firestone Tire & Rubber was contracted by the United States government to produce ABC-M17 face blanks starting in the third week of January, 1962 although by early 1963 Firestone's contract had ended. Due of this short production run, Firestone face blanks are the rarest with only a year of production.

1X

A relatively unknown manufacturer that has been seen on a few ABC-M17s outlet valve covers. It is unclear as of currently if this manufacturer made face blanks or if it only made outlet valve covers. The only production year known for this manufacturer as of now is 1964. Though It is still likely that this company produced ABC-M17 parts earlier or later then just 1964.


Filter Element

The M17 series protective mask took a slightly curved, triangular filter element often referred to as "pork-chop-shaped". The filter element came in white airtight, vacuum-packed paper/foil laminated bags with labels indicating the filter nomenclature.

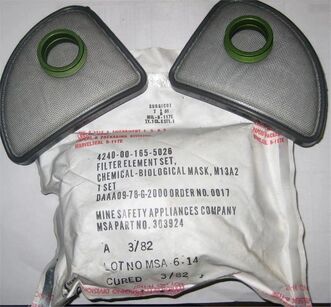

M13, M13A1, M13A2 Filter Element

Top To Bottom: M13, M13A1, M13A2

The different generations of filter elements can be identified by the color of the connector ring:

Filter Element Model Number# National/NATO Stock Number (NSN)* Connector Color Introduction Year
M13 4240-00-678-8474 Black 1959
M13A1 4240-00-934-7854 Black 1967
M13A1 4240-00-152-1607 Gold 1971
M13A2 4240-00-165-5026 Green 1971

#Nomenclature

  • Element, Filter, M13, 1 Right And 1 Left, 1 Pair
  • Filter Element, M13A1, 1 Right And 1 Left, 1 Pair
  • Filter Element Set, Chemical-Biological Mask, M13A2, 1 Set

*The NSN was introduced in 1975 and retroactively applied to everything that entered service before 1975 that was still in use/production. It was largely based on the previous Federal Stock Number (FSN) which is nearly identical except for the 2 digits after the first 4, in this case "-00-". As an example, M13A2 Filters produced from 1971 to 1975 are marked 4240-165-5026 which ones produced from 1975 on are marked 4240-00-165-5026. Since the M13 and M13A1 were not produced in or after 1975, they will always be marked without the 2 digit "-00-", except for manuals from 1975 and late which will use the new NSN.

The main difference between the M13 and the black ring M13A1 is that the original M13 has silver metal wire mesh visible inside the connector ring while the M13A1 has non wire white mesh. It is unknown why the M13A1 was reintroduced in 1971 with gold connector rings. They were produced for a very short time in 1971/1972 and thus are relatively uncommon. The M13A2 was also introduced in 1971 although it might not have entered production until 1972/73. The M13A2 was produced at least as late as 1992.

All generations of the filter element were intended for full combat use and were effective against all known chemical warfare agents, however as each generation was introduced, the previous generation was designated as only sufficient for training with tear gas (CS) or another confidence source such as isoamyl acetate (banana oil) or camphor.[11] The filters were not designed to filter out vapors generated from fuel, paints or solvents and the exposure to these hazardous materials would deteriorate the filter's ability to filter out chemical warfare agents.[12] The filters could filter out radioactive particles to keep those particles out of the wearer's respiratory system but concentrated those particles in the filter media close to the face. This could pose a danger to the wearer if gamma-emitting particles are trapped in the filter media or could expose the operator to beta or alpha-emitting particles during filter changes. The filters elements were annotated with the position (left or right), lot number, and breathing resistance measured in mm of water. The left and right filter elements had to have a breathing resistance of plus or minus 5 mm of water to be considered a matched pair. An unmatched pair would lead to premature exhaustion of one of the filter elements.[13]

Composition and Filtering Strategy

The filter elements were composed of lightweight gas-aerosol filter material that fit into cheek pouches of the mask.[5] The filter media contained ASC Whetlerite activated charcoal that contained chromium VI (hexavalent chromium) specifically added to defeat hydrogen cyanide (AC) and cyanogen chloride (CK), both blood agents.[5] The chromium VI additives are a known carcinogen, but the filters are considered safe for use as long as the filters are in good repair. However, the filters should be treated as hazardous waste when disposed of due to the chromium VI content.[11] The M13 series filter elements were of a unique airflow design. The particulate filtration stage is typically located upstream of the vapor filtration stage so that volatile material released by the trapped aerosol is removed by the vapor filter. The M13 filter element pair used with the M17 protective mask is an exception to this orientation. This filter provides single-stage filtration through application of a composite material consisting of fine particle size impregnated activated carbon (for vapor filtration) mixed with glass and polymer fibers (for aerosol filtration). A disadvantage of this single-stage approach is that the aerosol can penetrate a significant distance into the composite aerosol/vapor filter material before being removed from the airstream leading to a shorter duration until the chemical agent breaks through the filter and enters the wearers respiratory system.[14]

Changing Filter Element

The filter element could only be changed in a clean environment from the inside of the mask. The filter element was notoriously difficult to change, often taking 15 to 20 minutes to complete the task. However, a well trained soldier could accomplish the task in as few as five minutes.[15] It is worth noting that the task (task number 031-503-1010, Replace Filters in Your M17-Series Protective Mask) had no time limit.[16]

C20 Inlet Filter Valve Assembly

The filters were secured to the face blank on the outside with caps that contained the inlet filter valves. The inlet filter valve assembly featured a white stamp that indicated "TOP" on the outside edge of the assembly. (early examples of inlet valve caps may have the stamp in yellow ink as opposed to white ink) This was to ensure the internal louvers of the assembly faced downward to shed water and presumably liquid chemical warfare agents away from the filter media. The white "TOP" stamp was often worn away or mis-stamped on the inlet valve assembly. This was corrected at the unit level with a dot of white paint where the stamp should be.[13] The inlet valve assembly snapped onto the connector ring of the filter. It also should be noted that very early examples of inlet valve assemblies would have a little metal tab molded to the cap frame to help with easy removal of the caps. Though it was quickly removed from the design within a year or two of the introduction of the ABC-M17.

Filter Compatibility

The filter elements for the M17 series mask are not compatible with the filter elements of the many foreign clones of the mask due to small differences in the size, shape and connecting mechanism. Likewise, the M13 series filter elements will not fit into any of the M17 series clones.[17]

Maintenance Issues

Although the M17 series protective masks earned a reputation as being a reliable and robust mask that could stand up to difficult field environments, the series was vulnerable to faults unique to the design.

Drinking Lever

The innovative drinking system of the M17A1 and M17A2 operated with a small lever on the outlet valve assembly.  That lever became a source of maintenance problems due to service members over-torquing the lever and cracking the metal of the voice diaphragm and outlet valve assembly. It was believed that the drink tube was missing or poorly adjusted in the affected masks causing service members to over-torque the lever in frustration. The 1987 version of the technical manual addressed this problem by adding that fault to the inspection regime for the mask.[13]

Permanent Set

The natural and butyl rubber formulation of the M17 series mask was vulnerable to a "permanent set."  That is when the rubber of the mask retains a memory of a position when stored in that position for a long period of time.  For example, when the mask is stored folded in the mask carrier for an extended period of time.  This condition may result in a compromised seal which rendered the mask unusable.[13]

Copper Poisoning

The black lacquered brass hardware of the C8R1 head harness system of the mask often became scratched and worn with normal training and use of the mask. This allowed copper ions to migrate into the rubber around the hardware of the mask making the rubber weak and brittle.  This "copper poisoning" of the rubber was easily prevented by making sure the black lacquer on the brass hardware was in good repair and scratches or worn spots were covered with fresh black lacquer.[13]

Torn Buttonholes

The filter element pouches on the mask were closed with a series of plastic dumbbell-shaped buttons and buttonholes in the rubber of the face blank and nose cup assemblies.  A common fault of the mask was the tearing of these buttonholes--often due to the frustration of the service member while trying to replace the filter elements.  These button closures were critical to the proper airflow through the mask and torn buttonholes were considered a deadlining fault.  The task of changing the filter elements could be made easier by lubricating the plastic lugs with water or more commonly, saliva before attempting to button the closure flaps.[13]

Eye Lens Yellowing

The polycarbonate formulation of both the eye lenses and eye lens outserts were prone to yellow over time due to exposure to UV light, excessive heat and atmospheric pollutants such as ozone. With normal use, this process is slow enough not to affect the mask during its operational life, however, masks on the secondary market and "new-old-stock" eye lens outserts can show significant yellowing. The yellowing is uniform across the lens and is sometimes mistaken for purposely colored lenses, however, no yellow-colored eye lenses or outserts were made for the M17 series mask. The final stage of the polycarbonate eye lens degradation is severe yellowing, crazing, and embrittlement of the lens material.

Bloom

The butyl and natural rubber formulation of the M17 series mask has a tendency to accumulate a white, chalky

M17 with bloom

ABC-M17 displaying bloom and eye lens yellowing.

substance on its surface especially when stored without use for long periods of time. With use and maintenance, the bloom is normally worn away or washed off. Although unsightly, the bloom does not indicate damage to the function of the mask. The rubber formulation is engineered with protective substances that migrate to the surface of the mask to protect the rubber from attack by UV light or chemicals found in common decontamination solutions. The bloom may be simply washed off with mild soap and warm water.

Rubber Degradation

Collectors have observed that early examples of the ABC-M17s are prone to severe rubber degradation over time. It has been theorized that this is due to the masks butyl/natural rubber formulation being originally designed for low temperature, arctic climates. Possibly because of this, the early ABC-M17 masks seem more prone to rubber degradation faster in hot and humid climates then in colder climates. Since a significant number of ABC-M17s were issued in Vietnam and improperly stored over the years, it can be difficult to find pristine examples today.

Accessories

M1 Water Canteen Cap

This canteen cap has a special fitting that allowed a service member to drink water from a standard one or two-quart canteen safely in a contaminated environment. The cap connects with the drink tube connector on the M17A1, M17A2 and subsequent US protective mask models such as the M40 series, however, the M50 series opted for a different canteen connector type that is not compatible with the M1 cap. The cap did not work with the older style canteens when introduced due to a threading mismatch but worked with all modern U.S. Army one-quart and two-quart canteens.[18] The cap had a protective cover attached with a strap of plastic, but the plastic was susceptible to fatigue and quickly broke, losing the protective cover and rendering the cap unserviceable. Later designs incorporated a two-part strain relief system that had greater success at retaining the protective cover.

Microphone Adapter Assembly For M17A1 Masks

This item was a late Vietnam era accessory for the M17A1 that made it possible to use a headset with a semi-integrated microphone that would be attached to the front of the mask. These never saw major use or production so they are quite rare to find today.

VOICECOMM-II Adapter Assembly

Late into the M17s lifecycle there was a need for a vpu usable with the M17. The solution was to 3D print a adapter that would clamp to the M17s voice emitter assembly and would screw to the threads on the VOICECOMM-II. Some VOICECOMMs also were just held to the mask with elastic bands, though this was seen less then the adapter method.

M4 Winterization Kit

This kit was an olive drab canvas cover that goes over the inlet valves. It was designed to protect the valve disks from freezing in environments below freezing, usually at below 20 degrees Fahrenheit (-30 Celsius). The kit also prevents frost accumulation on the inlet valve caps. The use of the kit increases the breathing resistance for the wearer of the mask.[19]

M1 Resuscitation Hose

This apparatus was made specifically for the M17A1 and attached over the exhale valve allowing a masked soldier to perform mouth-to-mouth resuscitation on an unmasked soldier.[20] The hose assembly was difficult to use and often broke the seal on the wearer exposing the service member to chemical warfare agents.

ABC-M6 Field Protective Mask Hood

This was the first hood designed for the ABC-M17 being introduced around 1960-1962. These offered the same amount of protection as the later M6A2 hoods though were found unsatisfactory due to the lack of vecro adjustments and the lack of a zipper for ventilation which lead to the development and introduction of the ABC-M6A2 Protective Mask Hood in around the mid 60s. Even though they were quickly replaced, they still saw service in late Vietnam and were used for training purposes in the later half of the 1970s-80s.

ABC-M6A2 Field Protective Mask Hood

This was the standard Nuclear, Biological Chemical (NBC) hood for the M17 series protective mask. The hood attaches to the M17 series mask and protects the wearer's head and neck from chemical agent vapors or liquid droplets, biting insects, and radioactive dust particles.[21] The hood had a plastic fastener for the neck strap similar to the M4 hood for the M9A1 mask. The M6A2 was an updated variant; the difference being that the A2 had a different fastener type for the neck strap on later hoods and a zipper that made the mask and hood combination easier to don and doff. The hood could be worn in one of two configurations; summer and winter. The summer configuration had the hood pulled up over the outlet valve forcing clean, filtered air under the hood. This theoretically overpressurized the hood to make the infiltration of chemical warfare agent vapors less likely. However, in reality, the moisture content of the exhaled air condensed on the inside of the hood and eventually saturated the chemical protective overgarment rendering the garment less effective and increased the heat load on the wearer. The winter configuration had the hood under the outlet valve allowing the exhaled air to escape to the atmosphere. This prevented the build-up of ice from the moisture-laden, exhaled air under the hood in freezing temperatures.

M1 Eyelenses Outserts

Being originally introduced alongside the E13R9 to act as a "stormwindow" in cold climates to help prevent fogging of the lenses. They very quickly were adopted as a standard issue accessory to be used at all times on the ABC-M17 as a type of ballistic outsert to help protect the masks lenses from damage. The original design for the lenses utilized a semi-triangular sheet of polycarbonate sandwiched between a rubber skirt and a aluminum frame.(similar to the masks lens frames themselves) It was quickly redesigned soon after the introduction of the ABC-M17 to utilize a cheaper, more simplified crimped aluminum frame instead of one solid aluminum frame.

M1 Anti-Dim Cloth

Early on the M1 anti-dim cloth was used with ABC-M17 kits. The cloth was to be taken out of its container after you moisten the inner surface of the masks lenses with your fingertips. Then it would be wiped onto the inner surface of the lenses of the mask. This would be repeated after every use and after every cleaning of the mask to help keep the masks lenses from fogging while it was being worn. by the late 60s this accessory had been completely removed from standard issue.

Neutral Gray Eyelenses Outserts

M17a1 with neutral grey inserts

Neutral Grey M17 inserts shown next to a M17A1 mask

For use in high illumination areas and were essentially sunglasses for the protective mask. The outserts were not a basic issue item supplied with the mask and had to be ordered separately when missions in sunny areas were anticipated. The lenses attenuated the light but did not change the color of the light since the accurate color vision was required to read the M256A2 chemical agent detector kit tickets.

Green Laser Protection Eyelenses Outserts

For use at night or in low light conditions. These outserts provide protection from ruby and neodymium type lasers. They are made of polycarbonate and offer ballistic and impact protection.[22]

Brown Laser Protection Inserts

These inserts were used for day use only. The inserts offer protection against ruby, neodymium, and double neodymium lasers. The inserts snap into place behind the mask's lenses. Because of this, the inserts do not offer ballistic protection.

Optical Inserts

Optical Inserts

M17 optical insert types

For service members that require corrective lenses, two types of optical inserts were developed for the M17 series mask. The first consisted of a wire frame that fit into the perimeter of the eye lenses and suspended the corrective lenses roughly at eye level inside the mask. The second type attached to the area where the eye lenses met the face blank with a set of prongs. The prong type was only available with the M17A1 and M17A2 versions of the mask. The frame type optical inserts were considered safer since that type was more difficult to dislodge during the donning procedure.[23]

M5 Series Protection and Treatment Set

M5A3 Kit

M5A3 (1960)

The M5 Series Protection and Treatment Set was the standard personal decontamination kit issued to US military personnel at the time the M17 was introduced in 1959. In 1959 the M5A1 Protection and Treatment Set (1950) was in the process of being replaced by the M5A2 (1959). The M5A3 (1960) & M5A4 (1965) were also used with the M17. All M5 Kits were removed from service by 1969. The M5 Kit was carried in the small external pocket of the M17 carrier.

M13 Individual Decontamination And Re-Impregnation Kit

ABC-M13 Components

The M13 Individual Decontamination and Re-Impregnation Kit was introduced in 1965 and was carried in the external pocket of the M17 Mask Carrier, which was enlarged following the introduction of the M13 as the M13 was bigger than the M5. Following the introduction of the M258 in 1975, the M13 continued to be issued for use decontaminating clothing and equipment. It was not fully replaced until the introduction of the M280 Individual Equipment Decontaminating Kit in 1985, and declared obsolete in 1989.

M258 Skin Decontaminating Kit

US M258 Kit

The M258 Skin Decontaminating Kit was introduced in 1975 and became the standard decon kit for the skin. On the case was a clip which allowed the kit to be carried in various places, often on the M17 Carrier ring. It could also fit in the external pocket however the M13 was normally stored there as it had no clip.

US M258A1 Kit

M258A1 Personal Decontamination Kit

The M258A1 Personal Decontamination Kit was introduced in 1980 as a modified version of the M258. It had the same case as the M258 and was carried the same way. After 1985 it was sometimes carried in the external pocket where the M13 used to be, however it was still most often clipped to the Carrier or elsewhere. This was the decon kit in use when the M17 was retired from service and replaced by the M40.

M8 Chemical Agent Detector Paper

M8 Paper

M8 Detection Paper Booklet with Color Guide.

Consists of a book of perforated sheets of chemically treated, dye-impregnated paper. A color comparison bar chart is printed inside the front cover. Chemicals in the paper cause-specific color changes when paper contacts liquid nerve or blister agents.[13] The booklet consisted of 25 sheets of detector paper but each sheet was bifurcated so it allowed up to 50 tests for a liquid agent.

M1A1 Waterproof Bag

The M1A1 waterproof bag was a heavy-duty vinyl bag supplied with rubber bands that were designed to accommodate the M17 series mask with attached hood. The bag was used in operations where the mask was likely to get wet; e.g. river crossing operations. The bag was stored folded in a pouch inside the main compartment of the mask carrier. Keeping the mask dry was critical to the correct operation of the mask. If the filter elements become saturated with water, the breathing resistance would dramatically increase and the protective qualities of the filter elements would be compromised.[19] The waterproof bag contained a high concentration of plasticizers as part of its formulation to keep the bag soft and pliable in both hot and cold conditions and after long-term storage. These plasticizers would polymerize with the rubber formulation of the mask if left in the bag for long periods of time so instructions on the bag warned to use the bag only when needed. Additionally, the instructions warned that the bag was not to be used for the storage of food or water.

Mark I Nerve Agent Antidote Kit (NAAK)

The NAAK was issued when there was a likelihood of a nerve agent attack. Three kits were normally carried in a pouch inside the main compartment of the mask carrier along with the waterproof bag.

IMG 20181013 151509713

A early M17 Mask Carrier worn in the hip carrying configuration. Note the Chemical Corps insignia stenciled on the carrier. The photo was taken of a Viet Nam War era diorama at the National Museum of the Marine Corps, Triangle, Virginia.

M17 Mask Carrier

The mask carrier for the M17 series mask was a heavy cotton canvass, olive drab colored bag with nylon webbing and brass fasteners. Later versions of the mask carrier were made from a water-resistant nylon material. The mask carrier had fiberboard stiffeners sewn into the sides of the pouch to add to the structural integrity of the bag. The carrier had a large pouch that would contain the mask with a small pouch inside the main compartment designed to house the M1 eye lens outserts when not in use. (later on was used to store the M1 waterproofing bag) The carrier originally had a small snapped pocket on the rear to accommodate the M5A1-M5A4. In 1965 the M13 was introduced which was larger that the M5 kits which the pocket was designed for and thus the pocket was enlarged. The later M258 & M258A1 kits were the same size as the M13 so the pocket remained unchanged. There were also two pockets on the upper and lower halves of the carrier. (only the upper pocket on late carriers) These pockets were to store accessories as well as the shoulder/waist and waist/leg straps. The upper pocket was used to store the anti-dim cloth as well as the shoulder/waist strap when not in use. (very early carriers had a special loop sewn inside the upper pocket for storing the anti-dim cloth) The lower pocket was used to store the M1 waterproofing kit as well as the waist/leg strap when not in use. (waterproofing kit would be carried in the carriers inside pocket later on) Early carriers also incorporated a strip of canvas webbing on the right side of the carrier that could be used alongside slide keepers to belt carry the carrier. The carrier was always worn on the left side of the body in the hip, shoulder, or belt carrying configurations. The mask was stored in the carrier with eye lenses facing the opening of the carrier with the head harness folded inside of the mask and the hood stored inside out to facilitate the rapid donning of the mask if installed. The carrier had the nomenclature of the mask and on very early carriers the Chemical Corps insignia stamped on the left side of the carrier.

67505576 2482447211983055 2870760246635134976 n

An example of the nylon version of the M17 mask carrier.

Cultural Impact

Due to the long service life of the M17 series masks, the distinctive image of that mask diffused into popular culture, arts, and entertainment.

Tunnel Rats

Tunnel Rat

A specially equipped "Tunnel Rat" with an ABC-M17 protective mask.

The ABC-M17 was the standard-issue protective mask for the United States Army throughout the Vietnam war.  Although there was little risk of the use of lethal chemical warfare agents by either side, the American Army made extensive use of riot control agents (most commonly, CS) during certain missions.  One of those missions was the clearing of tunnel networks dug by enemy forces to protect their forces from observation and attack with aircraft delivered munitions or artillery.  The tunnel networks were filled with riot control agents through CS grenades or micro pulverized CS agent dispersers.  Specially outfitted Soldiers would then clear the tunnels of enemies and booby traps.  The residual CS inside the tunnels required the use of the ABC-M17 mask to be able to complete the mission.  These Soldiers were nicknamed "Tunnel Rats" and captured the imagination of the public.  Although the ABC-M17 was associated with tunnel rats, the less bulky and more comfortable M28 riot control mask, nicknamed the "Grasshopper Mask", took over that role in 1968.

The First Gulf War AKA Desert Storm

Time Gulf War

A "Time" commemorative book of the First Gulf War featuring Soldiers with the M17A2 protective mask.

In 1990-1991 Gulf War brought a threat of the first large-scale chemical war since World War I to the United States and its coalition allies.  Iraq was known to have a large inventory of chemical munitions and it was feared that they would be used in the effort to drive Iraqi forces from Kuwait.  The United States Army made a concerted effort to show Soldiers and other coalition members donning protective gear, to include the M17A2 protective mask, to show that coalition forces were prepared for any type of chemical warfare.  The U.S. doctrine at that time allowed for the use of chemical weapons in a retaliatory capacity (this was before the 1997 Chemical Warfare Convention)[24], however, coded diplomatic language made it clear that the use of chemical weapons by the Iraqis may trigger the use of nuclear weapons by the United States.  Photos of troops wearing the M17A2 mask were run in newspapers and magazines and is closely identified with that war.

Gas Mask Mooks

In the 1990s as the M17 series mask was gradually being replaced by the M40

Outbreak screen grab

Screenshot from the 1995 movie Outbreak featuring troops in MOPP IV with the M17A2 mask leading an infected citizen to a quarantine facility.

series mask, M17 series masks began to flood the secondary market.  This made the M17 a cheap and available prop for television and movie producers where the script called for faceless minions often representing a corrupt government executing malevolent plans.  Notably, the X-files television series often depicts government goons of a secret and corrupt conspiracy wearing variants of the M17.  The gas mask mook trope has often been criticized on logical grounds.[25]  Why would a goon need a gas mask when it is clear that there is no respiratory threat and wearing one would hamper physical performance?  Clearly, the wearing of a protective mask is meant to indicate the inhumanity and lack of empathy for those wearing the masks.  Even in the more accurate representations of the use of M17 series protective mask, the wearers are seen as harbingers of evil.  In the 1995 movie Outbreak, Soldiers in full protective ensemble escort disease victims to collection areas to die and eventually be incinerated.  Curiously, the M17 series is not well represented in video games perhaps due to the mask being out of service when sophisticated first-person shooter games were being developed. A notable exception is 2012, DayZ Standalone game where the Czechoslovakian M10M, an M17 clone, features prominently.  The M17 has appeared in some post-apocalyptic art and comics throughout the 1970s and 1980s.  It is assumed that the air is contaminated with chemical, biological or radiological agents in the post-apocalypse.

IMG 20190503 134503399

Cover of a religious tract VHS tape featuring the M17A2 used to portray the apocalyptic debasement of the human society. The tape is part of a six VHS tape set, published in 2001 by Dr. Ed Hindson and the Jerry Falwell Industries.

Tumblr ojjiqjzUnB1sndzdgo1 1280

Pepe Moreno’s ‘Bunker 6A,’ from the May 1984 issue of Heavy Metal magazine. The protagonist in the story wears an M17 variant when attacking a bunker in a hellish landscape.

Foreign Copies

The M17 series mask design was copied in at least four countries. These include:

M10 (Czechoslovakia)

Main article: M10

Similar to the ABC-M17 but made of a light grey rubber and a different outlet valve cover assembly. Its inlet filter valve covers are threaded as opposed to the "snap-on" version of the original M17 series mask.

M10M (Czechoslovakia)

Main article: M10M

Identical to the M10 but includes a drinking system similar to the M17A1 and M17A2. The diaphragm and outlet valve assembly on this model are also completely made out of grey plastic as opposed to the rubber that covers the assembly on the M10 Model.

PDE-1 (Bulgaria)

Main article: PDE-1

Same as the M10 but made of black rubber and featuring a rubber, five-point head harness.

MP-4 (Poland)

Main article: MP-4

A direct clone of the M17. Older models were made of an olive-colored rubber with olive drab straps while newer models are made of gray rubber with blue straps. The eye lenses on the MP-4 are slightly farther apart when compared to the original M17.

M17 (Korea)

Korean Samgong made M17 in the 70s-80s.

Type 3 (Japan)

Main article: Type 3

It is one of the closest copy, only the rubber colour is different, which is green.

Gallery
